Sagittarius Ravenna Thermostatic Concealed Shower Valve with 3-Way Diverter Triple Handle - Brushed Brass Sagittarius Ravenna Thermostatic Concealed Shower Valve with 3-Way Diverter Triple Handle - Brushed Brass
Sagittarius Ravenna Thermostatic Concealed Shower Valve with 3-Way Diverter Triple Handle - Brushed Brass Sagittarius Ravenna Thermostatic Concealed Shower Valve with 3-Way Diverter Triple Handle - Brushed Brass

Sagittarius Ravenna Thermostatic Concealed Shower Valve with 3-Way Diverter Triple Handle - Brushed Brass

Quick Code: 2849121
Ref: SAGRA578BB
Sagittarius
£421.95 Inc. VAT

Special offer - available at a new lower price for a limited time

Was: £

PayPal Credit
Spread the cost with 12 monthly payments of £35.16 at 0% APR using PayPal.

In Stock

Usually delivered within 2 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

Product Features

  • Shower valve supplies water to 3 outlets
  • Manufactured from solid brass material for longevity
  • Thermostatic control for safety and peace of mind
  • Thermostatic polymer - vernet cartridge
  • Temperature Pre-set at 38 degree C with push bush button override to 48 degree C
  • Top control operates two shower outlets centre adjusts temperature bottom control operates the other shower outlet
  • Automatic shut off in the event of hot or cold water supply
  • Comes in stunning brushed brass finish
  • Suitable for high and low pressure systems
  • Suitable for combi boilers
  • Portrait wall mounted installation and contemporary design
  • Triple handle valve with diverter
  • Manufactured to comply with WRAS TMV2 and BSEN 1111
  • Chrome plated to BS EN248
  • Guarantee :10 Year (3 year on serviceable parts) for Warranty Information See Product Documents
Show More

Shower TypeThermostatic
Shower Valve Controls3
Shower Valve PositionConcealed
Valve ShapeRectangular
Handle TypeSquare/Lever
Shower Valve Outlets3
Minimum Pressure0.5 Bar
Maximum Pressure7.0 Bar

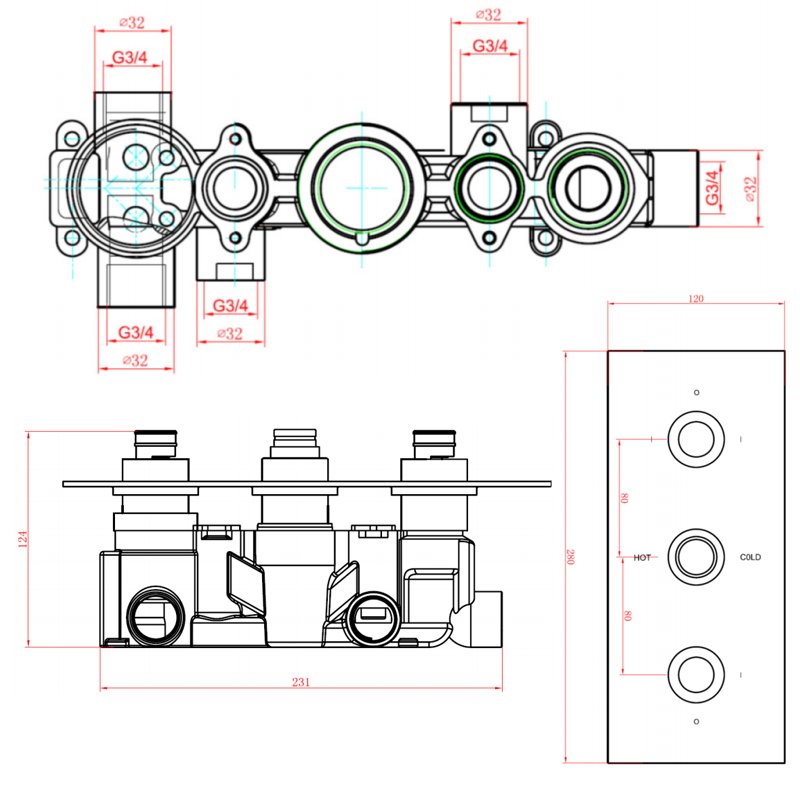

Shower Valve Height280mm
Shower Valve Width120mm
Shower Valve Depth124mm
Inlet Connection Size3/4 BSP
Outlet Connection Size3/4 BSP
Valve OrientationPortrait
MaterialBrass
ColourBrushed Brass
BrandSagittarius
CollectionRavenna
StyleModern
MarketDomestic
EAN Barcode503481578029
Manufacturer Part Number(s)RA/578/BB
Flow Rate @ 0.5 Bar9.3 l/min
Flow Rate @ 1.0 Bar11.6 l/min
Flow Rate @ 2.0 Bar14.8 l/min
Flow Rate @ 3.0 Bar17.5 l/min
